LHS System
$
LHS System
Product Features:

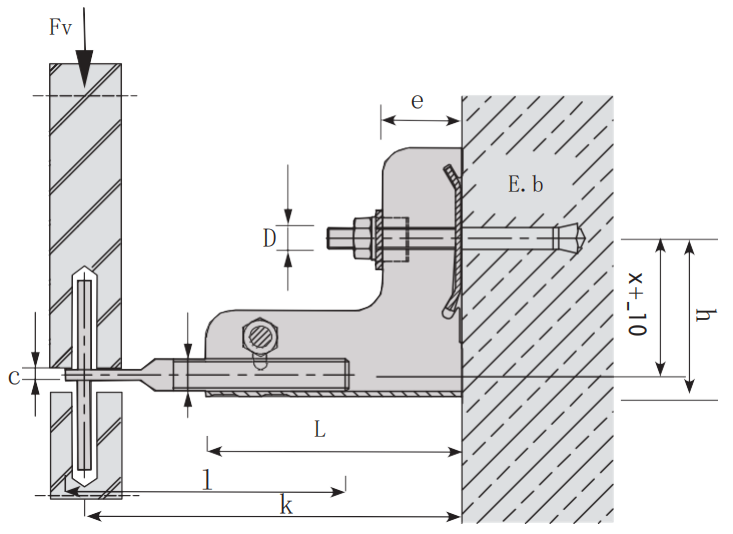

LHS Body anchor are suitable for large cavity distance of 140mm to 300mm and high loads up to 130KG.
The pre-assembled anchor consisting of the bracket body, the adjustable arm, adjustable wedge plate and clamping bolt is supplied ready to be installed.
The cavity distance is adjusted using the adjustable arm.
The anchor can be pivoted for lateral adjustment. the clamping bolt is pre-assembled at the factory for the left to right installation but is easily adapted for right to left installation.
It is Imperative that the clamping bolt is tightened with a spanner following installation of the nature stone panel with a torque of 5Nm.
