DHS System
$
DHS System
Product Features:
DHS body anchor are 3-dimensional adjustable.
They are designed to carry only horizontal tension or pressure loads. DHS anchor are used in combination with other anchor to fix top or end slab.
The restraint anchor is used mainly in vertical joints, for edges and corners including parapet slabs.

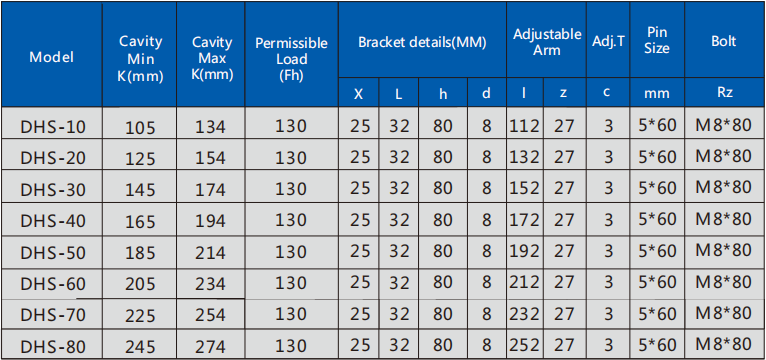

They are designed for cavity installations of 60-320mm with a maximum load of 1300N.

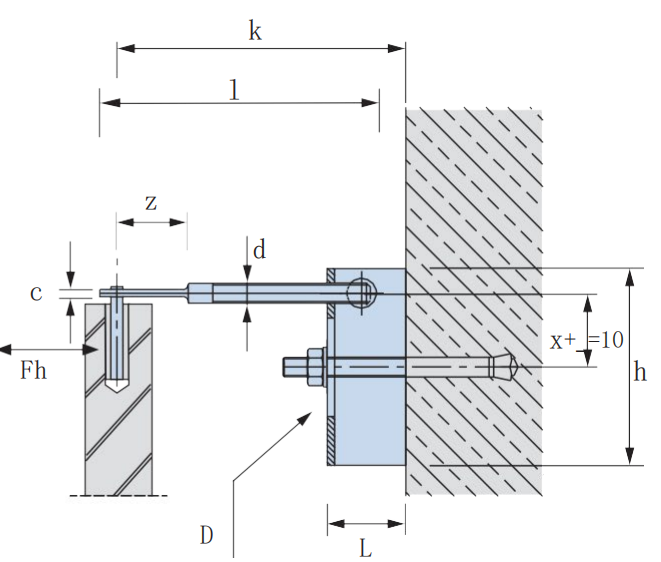

Cavity distance is adjusted using the adjustable arm.
9x30mm slot allows vertical adjustment.
9x30mm slot allows vertical adjustment.
Anchor is pivoted for lateral adjustment. the adjustable arm is secured to the body with a locking nut.
